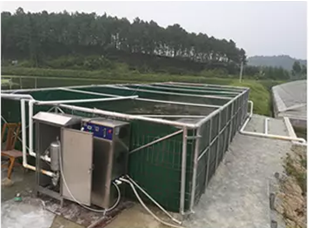

 Sewage Treatment Or Industrial Water Application Ozone Generators

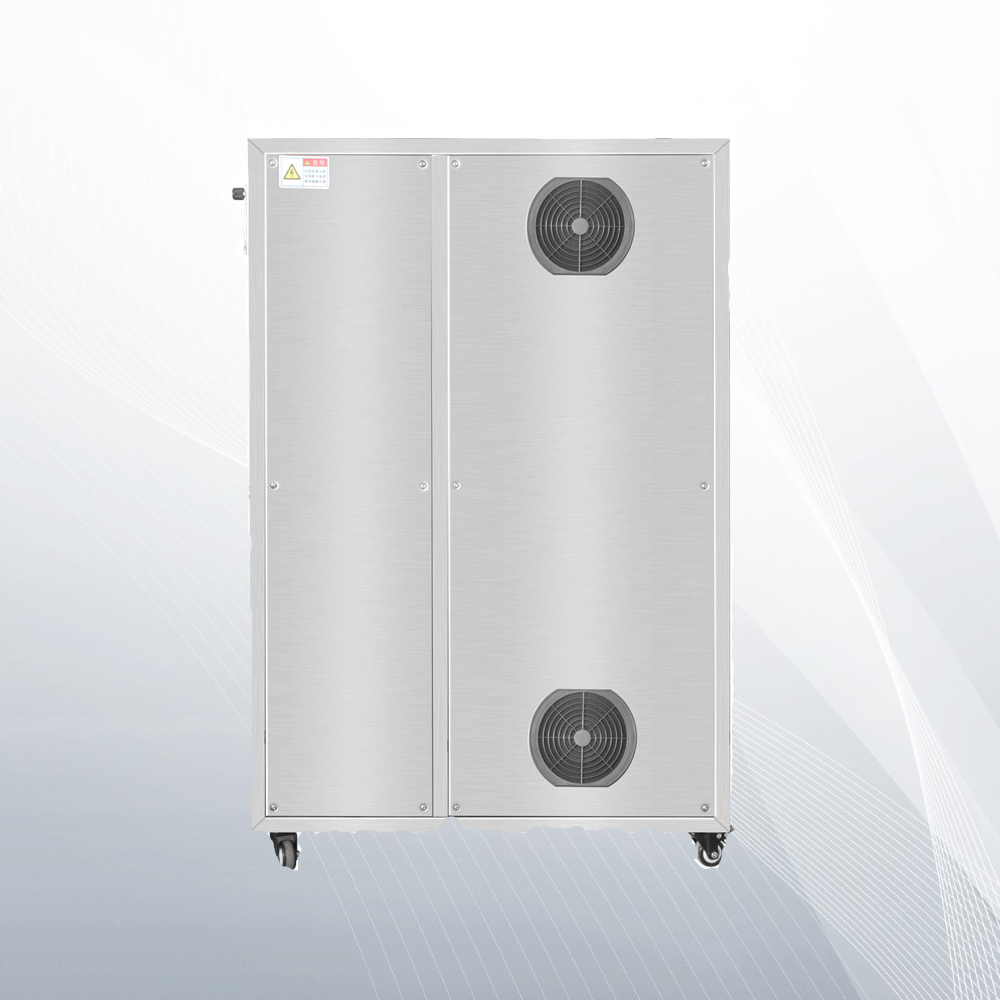

Model SW100G Oxygen Concentrator Fed 100g ozone generator

Package includes:
100g Ozone generator with Oxygen concentrator in Stainless steel Cabinet.
Total Price:$13,733
1 (2) inch Venturi Injector

Model SW50G Oxygen Concentrator Fed 50g ozone generator

Package includes:
50g Ozone generator with Oxygen concentrator in Stainless steel Cabinet.
1 (2) inch Venturi Injector
1 (2) inch Static Mixer
50g Option: $7,333

Heavy Duty Oxygen Concentrator Fed Machines

  • The equipment utilizes molecular sieves as adsorbent from the top quality pressure swing adsorption(PSA) process to separate oxygen & nitrogen & filters harmful substances from the air. High levels of oxygen are created which meet the standard of medical oxygen. PSA oxygen generating provide you with the purity of 85%±5 oxygen to meet all requirements.
  • Multi-point malfunction monitoring
  • The equipment utilizes large power IGBT modules, which are extremely stable, high efficiency ,long lifespan dehydroxylation ceramic and enamel structure, air cooled parts ,world-class essential components and world-leading intelligent design.
  • Adjustable oxygen flow rate, which will change ozone output & concentration for meeting with different output requirements.
  • Stainless steel / Mild Steel frame & enclosure
  • Utilizes refrigerant dryer for cooling input air which can protect the oxygen & ozone unit for longer service life in good working condition
  • Ozone output adjustable,with low noise level
  • The whole gas circuits work in a low pressure which makes the machine safe and reliable
  • Mild steel /Stainless steel case & stainless steel 304 ozone outlet
  • CE Rohs approved

Patented Ozone Enamel Tube

  • High Efficiency: 800~1000g/m2; It was 4~5 times higher than that of normal ozone generation technology.
  • Less Power: High-frequency corona discharging; Power Consumption Rate: 8~10KW.h/kgO3.
  • Compactness: Compare with other same capacity ozone tubes, our ozone tube is 33% shorter; Long life, non-oxidizing & heatproof;
  • Enamel Tube: Imported high-pressure sintering of highly purified enamel
  • Non-disruptive: Breakdown voltage is 10% of ozone tube working voltage; High dielectric constant, Low loss & high efficiency cooling system (air-cooling external tube; water-cooling inner tube)
  • Variable Voltage range: 50V will produce ozone; 220V will reach maximum efficiency; Ozone capacity is adjustable





50g O2 fed Industrial Water Ozone



100g O2 Fed Industrial Water Ozone



200g O2 Fed Industrial Water Ozone
